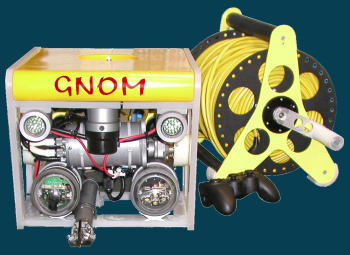

Pilot sample of the new line of ROVs GNOM family.
Technical specifications:
- 3-5 magnetically coupled thrusters. 2 horizontal, 2 x vertical (thrust 5 kg per each), 2 laterial
- Operating depth up to 150 m, maximal depth 300 m
- Horizontal speed up to 3 knots
- Thin flexible Kevlar umbilical cable (6-8mm), up to 400 m long
- Color camera Super HAD CCD 1/3", 440K Pixels, 480 TV Lines, 0.5 lux, digital ZOOM and surface module of color rendering control
- Four clusters of ultra-bright LEDs
- Depth sensor, autodepth mode
- Data on screen overlay
- Compass, autoheading mode
- Power supply 100-240VAC
- Total power consumption 1200Watt
- Full system is packed in two waterproof cases
- ROV weight: 10 kg, total system weight: 45 kg
- ROV dimensions: 450х300х280 mm
System set:
- SuperGNOM Pro submersible (operating depth up to 300m)
- Tether 150 m
- Compass with the auto-heading mode (data on screen overlay)
- Depth sensor (auto-depth mode)
- Camera tilt servo ±50°
- Lights tilt servo ±50°
- Manipulator-grabber (option)
- Sector scan sonar (option)
- USBL positioning system (option)
- Cable reel with slip ring conector (aluminium)
- Surface control/power unit
- Protective polypropylene frame with buoyant module
- 2 cases
- Wireless joystick Logitech
- Cable connectors set
- Repair kit
- User's manual
Standard ROV warranty (except cable and propellers) is 1 year (up to 2 years). Time of manufacturing is 8 – 12 weeks.
